XML Reis

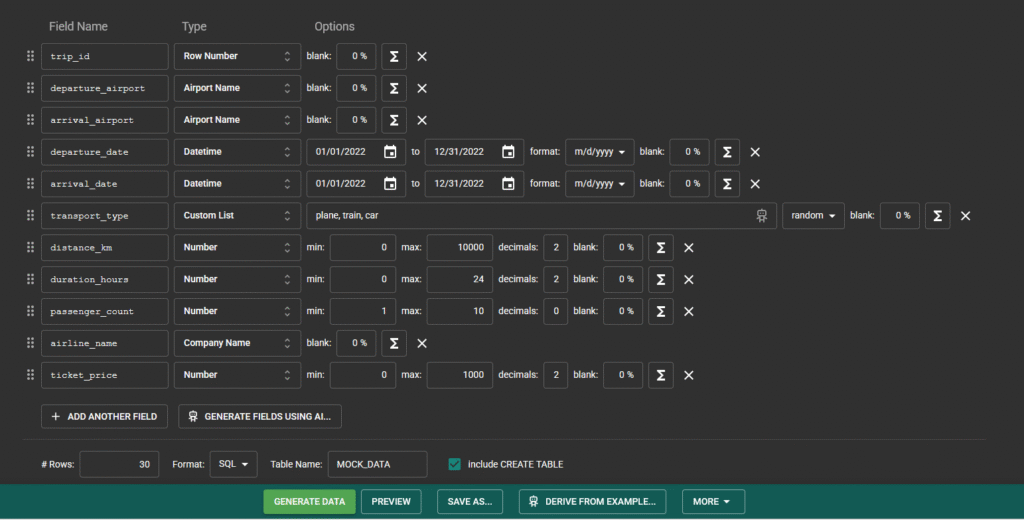

  1. Andmete loomiseks kasutame Mockaroo’d.
  1. Loome andmebaas.
SQL
CREATE DATABASE XMLReis
  1. Kasutame andmebaas
SQL
USE XMLReis
  1. Loome tabel
SQL
create table MOCK_DATA (
	trip_id INT,
	departure_airport VARCHAR(100),
	arrival_airport VARCHAR(100),
	departure_date DATE,
	arrival_date DATE,
	transport_type VARCHAR(5),
	distance_km DECIMAL(7,2),
	duration_hours DECIMAL(4,2),
	passenger_count INT,
	airline_name VARCHAR(50),
	ticket_price DECIMAL(6,2)
);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (1, 'Alexandria Homestead Airport', 'Dos Lagunas Airport', '4/13/2022', '9/22/2022', 'train', 4811.95, 3.98, 1, 'Lazz', 932.92);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (2, 'Telegraph Harbour Seaplane Base', 'Luxembourg-Findel International Airport', '7/28/2022', '3/1/2022', 'plane', 4855.23, 5.94, 8, 'Fatz', 559.84);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (3, 'Santa Rosa Airport', 'Licenciado Gustavo Díaz Ordaz International Airport', '3/8/2022', '5/17/2022', 'train', 3974.36, 12.77, 8, 'Bubblebox', 441.21);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (4, 'Hólmavík Airport', 'Karl Stefan Memorial Airport', '3/31/2022', '1/30/2022', 'car', 4156.16, 2.57, 8, 'Geba', 386.47);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (5, 'Mustique Airport', 'Juanda International Airport', '11/20/2022', '9/20/2022', 'plane', 2584.44, 4.91, 5, 'Quaxo', 247.13);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (6, 'Creston Valley Regional Airport - Art Sutcliffe Field', 'Los Alamos Airport', '7/11/2022', '2/19/2022', 'plane', 6000.88, 18.62, 10, 'Feedspan', 225.28);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (7, 'Mong Hsat Airport', 'Tsumeb Airport', '8/13/2022', '11/25/2022', 'train', 502.29, 18.17, 8, 'Jabbersphere', 496.07);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (8, 'Tuscaloosa Regional Airport', 'Juan Mendoza Airport', '7/8/2022', '7/11/2022', 'car', 4911.61, 13.43, 5, 'Mudo', 617.61);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (9, 'Chicago Rockford International Airport', 'Negage Airport', '12/23/2022', '11/2/2022', 'plane', 8447.41, 1.04, 6, 'Ntags', 173.12);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (10, 'Tekin Airport', 'Kashechewan Airport', '8/6/2022', '9/14/2022', 'car', 3586.65, 13.62, 3, 'Skimia', 568.61);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (11, 'Kunua Airport', 'Diavik Airport', '3/9/2022', '9/30/2022', 'train', 2103.32, 11.9, 4, 'Cogibox', 862.38);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (12, 'Benito Salas Airport', 'Mid Delta Regional Airport', '8/30/2022', '3/9/2022', 'plane', 8780.32, 1.58, 1, 'Brainsphere', 334.21);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (13, 'Mission Field', 'Fazenda Barra do Agudo Airport', '1/5/2022', '7/30/2022', 'car', 2792.03, 23.51, 10, 'Zazio', 669.13);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (14, 'Palanga International Airport', 'Kingaroy Airport', '11/20/2022', '7/11/2022', 'train', 9145.35, 8.08, 9, 'Yadel', 397.22);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (15, 'Three Rivers Municipal Dr Haines Airport', 'Skagit Regional Airport', '2/8/2022', '11/14/2022', 'car', 2709.62, 3.75, 4, 'Quinu', 388.82);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (16, 'Luang Phabang International Airport', 'Sardar-e-Jangal Airport', '4/3/2022', '3/28/2022', 'train', 9360.4, 16.72, 4, 'Babbleblab', 838.25);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (17, 'Cuneo International Airport', 'Qazvin Airport', '1/21/2022', '11/15/2022', 'car', 8154.86, 19.39, 1, 'Flipstorm', 283.49);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (18, 'Hato International Airport', 'Cotswold Airport', '11/12/2022', '12/1/2022', 'plane', 135.19, 10.61, 5, 'Skivee', 785.84);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (19, 'Londolozi Airport', 'Croydon Airport', '6/2/2022', '1/29/2022', 'train', 6185.03, 1.08, 2, 'Realbridge', 697.2);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (20, 'Telêmaco Borba Airport', 'Dabo Airport', '1/21/2022', '4/16/2022', 'plane', 3150.76, 10.58, 2, 'Kwilith', 722.22);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (21, 'Travis Air Force Base', 'Mitchell Municipal Airport', '10/30/2022', '8/24/2022', 'train', 7339.92, 8.88, 2, 'Quinu', 955.13);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (22, 'Ames Municipal Airport', 'Ganzhou Airport', '8/22/2022', '6/7/2022', 'train', 5033.51, 10.68, 10, 'Thoughtsphere', 215.02);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (23, 'Leaf Rapids Airport', 'Kasompe Airport', '6/27/2022', '7/3/2022', 'car', 510.21, 12.15, 8, 'Aivee', 398.0);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (24, 'Serui Airport', 'Bakkafjörður Airport', '5/22/2022', '6/17/2022', 'train', 1605.65, 2.45, 3, 'Babbleset', 303.6);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (25, 'Miraflores Airport', 'Awar Airport', '3/2/2022', '4/4/2022', 'plane', 2064.85, 4.39, 8, 'Flashset', 604.79);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (26, 'Mayaguana Airport', 'Dongsha Island Airport', '7/15/2022', '1/27/2022', 'train', 2709.21, 0.17, 10, 'Dabshots', 280.29);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (27, 'Cambridge Dorchester Airport', 'Eduardo Gomes International Airport', '11/3/2022', '7/8/2022', 'car', 8402.5, 9.32, 8, 'Bubblebox', 530.97);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (28, 'Vung Tau Airport', 'Dimmit County Airport', '11/20/2022', '10/1/2022', 'train', 5183.67, 7.66, 9, 'Browsebug', 300.43);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (29, 'Vanua Balavu Airport', 'Gush Katif Airport', '4/18/2022', '11/26/2022', 'car', 2566.6, 20.6, 1, 'Rhynyx', 435.12);
insert into MOCK_DATA (trip_id, departure_airport, arrival_airport, departure_date, arrival_date, transport_type, distance_km, duration_hours, passenger_count, airline_name, ticket_price) values (30, 'Lusambo Airport', 'Tocumwal Airport', '1/16/2022', '9/15/2022', 'car', 4101.41, 3.54, 4, 'Gigashots', 81.45);
  1. Loome SELECT päring
SQL
SELECT
    'Reisid' AS Root,
    (
        SELECT
            trip_id AS 'reis_id',
            (
                SELECT
                    departure_airport AS 'Väljumis_lennujaam',
                    arrival_airport AS 'Sõidukoha_lennujaam'
                FOR XML PATH('Lennujaamad'), TYPE
            ),
            (
                SELECT
                    transport_type AS 'Transpordi_liik',
                    distance_km AS 'Kaugus_km',
                    duration_hours AS 'Kestus_tunnid',
                    passenger_count AS 'Reisijate_arv',
                    airline_name AS 'Lennufirma_nimi',
                    ticket_price AS 'Piletihind'
                FOR XML PATH('Andmed'), TYPE
            )
        FROM MOCK_DATA
        FOR XML PATH('Reis'), TYPE
    ) AS Reisid
FOR XML PATH('Reis'), ROOT('Reisid')
  1. C# kood

Funktsioon GetXmlFromQuery loob ühenduse SQL Serveri andmebaasiga nimega XMLReis.

Seejärel käivitab see SQL-päringu, mis teisendab MOCK_DATA tabeli andmed XML-vormingusse.

OnGet meetod võtab andmebaasist saadud XML-i ja rakendab sellele Reisid.xslt failis määratletud XSLT teisenduse.

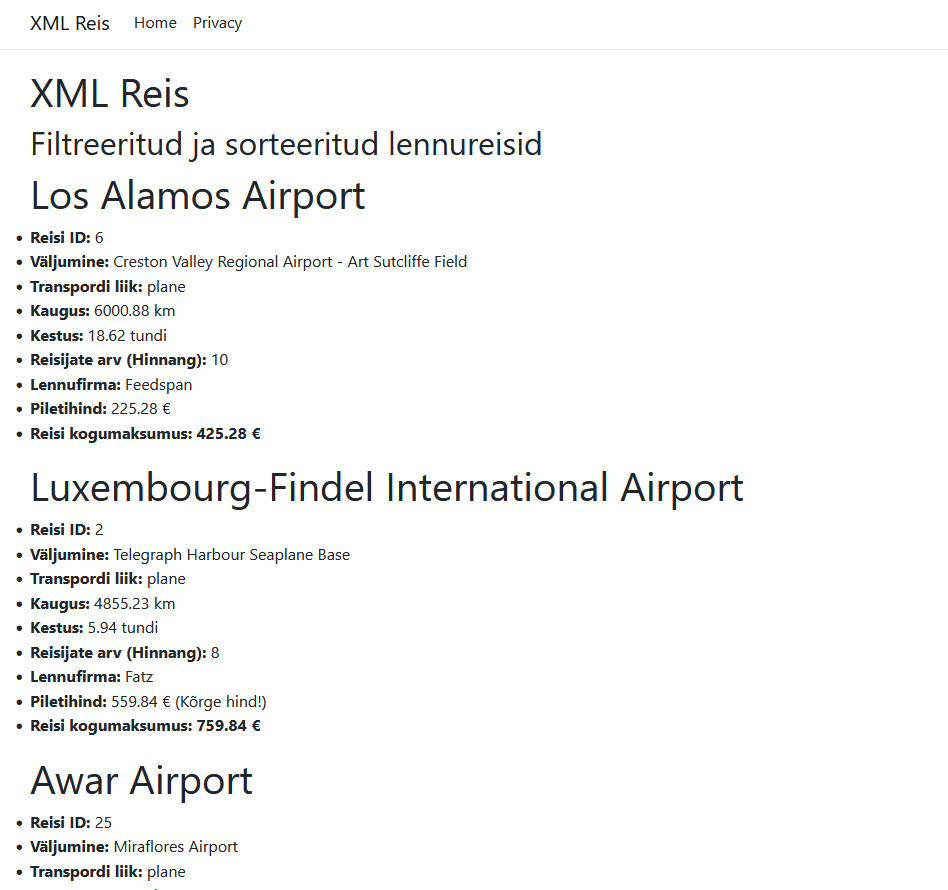

Teisendatud XML salvestatakse TransformedXml atribuuti, mis kuvatakse veebilehel.

C#
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Mvc.RazorPages;
using Microsoft.Data.SqlClient;
using System.Text;
using System.Xml;
using System.Xml.Xsl;

namespace XML_Reis.Pages
{
    public class IndexModel : PageModel
    {
        public string TransformedXml { get; private set; }

        private readonly IWebHostEnvironment _hostingEnvironment;

        public IndexModel(IWebHostEnvironment hostingEnvironment)
        {
            _hostingEnvironment = hostingEnvironment;
        }

        public void OnGet()
        {
            try
            {
                var xml = GetXmlFromQuery();
                var xsltPath = Path.Combine(_hostingEnvironment.ContentRootPath, "wwwroot", "Reisid.xslt");

                var xslt = new XslCompiledTransform();
                xslt.Load(xsltPath);

                using (var stringReader = new StringReader(xml))
                using (var xmlReader = XmlReader.Create(stringReader))
                using (var sw = new StringWriter())
                {
                    xslt.Transform(xmlReader, null, sw);
                    TransformedXml = sw.ToString();
                }
            }
            catch (Exception e)
            {
                Console.WriteLine(e);
            }
        }

        public static string GetXmlFromQuery()
        {
            string connectionString = "Server=(localdb)\\MSSQLLocalDB;Database=XMLReis;";

            string queryString = @"
            SELECT
                'Reisid' AS Root,
                (
                    SELECT
                        trip_id AS 'reis_id',
                        (
                            SELECT
                                departure_airport AS 'Väljumis_lennujaam',
                                arrival_airport AS 'Sõidukoha_lennujaam'
                            FOR XML PATH('Lennujaamad'), TYPE
                        ),
                        (
                            SELECT
                                transport_type AS 'Transpordi_liik',
                                distance_km AS 'Kaugus_km',
                                duration_hours AS 'Kestus_tunnid',
                                passenger_count AS 'Reisijate_arv',
                                airline_name AS 'Lennufirma_nimi',
                                ticket_price AS 'Piletihind'
                            FOR XML PATH('Andmed'), TYPE
                        )
                    FROM MOCK_DATA
                    FOR XML PATH('Reis'), TYPE
                ) AS Reisid
            FOR XML PATH('Reis'), ROOT('Reisid')";

            StringBuilder xmlOutput = new StringBuilder();

            using (SqlConnection connection = new SqlConnection(connectionString))
            {
                try
                {
                    connection.Open();
                    using (SqlCommand command = new SqlCommand(queryString, connection))
                    {
                        using (XmlReader reader = command.ExecuteXmlReader())
                        {
                            while (reader.Read())
                            {
                                xmlOutput.Append(reader.ReadOuterXml());
                            }
                        }
                    }
                }
                catch (Exception e)
                {
                    Console.WriteLine(e);
                }
            }

            string xmlResult = xmlOutput.ToString();

            return xmlResult;
        }
    }
}
  1. XML-skeem:
XML
<?xml version="1.0" encoding="utf-8"?>
<xs:schema attributeFormDefault="unqualified" elementFormDefault="qualified" xmlns:xs="http://www.w3.org/2001/XMLSchema">
	<xs:element name="Reisid">
		<xs:complexType>
			<xs:sequence>
				<xs:element name="Reis">
					<xs:complexType>
						<xs:sequence>
							<xs:element name="Root" type="xs:string" />
							<xs:element name="Reisid">
								<xs:complexType>
									<xs:sequence>
										<xs:element maxOccurs="unbounded" name="Reis">
											<xs:complexType>
												<xs:sequence>
													<xs:element name="reis_id" type="xs:unsignedByte" />
													<xs:element name="Lennujaamad">
														<xs:complexType>
															<xs:sequence>
																<xs:element name="Väljumis_lennujaam" type="xs:string" />
																<xs:element name="Sõidukoha_lennujaam" type="xs:string" />
															</xs:sequence>
														</xs:complexType>
													</xs:element>
													<xs:element name="Andmed">
														<xs:complexType>
															<xs:sequence>
																<xs:element name="Transpordi_liik" type="xs:string" />
																<xs:element name="Kaugus_km" type="xs:decimal" />
																<xs:element name="Kestus_tunnid" type="xs:decimal" />
																<xs:element name="Reisijate_arv" type="xs:unsignedByte" />
																<xs:element name="Lennufirma_nimi" type="xs:string" />
																<xs:element name="Piletihind" type="xs:decimal" />
															</xs:sequence>
														</xs:complexType>
													</xs:element>
												</xs:sequence>
											</xs:complexType>
										</xs:element>
									</xs:sequence>
								</xs:complexType>
							</xs:element>
						</xs:sequence>
					</xs:complexType>
				</xs:element>
			</xs:sequence>
		</xs:complexType>
	</xs:element>
</xs:schema>
  1. Konverteerime fail XML’ist JSON’iks
PHP
<?php
// Laeme XML faili
$xml = simplexml_load_file("XMLFile.xml");

// Teisendame XML objektist JSON-iks
$json = json_encode($xml, JSON_PRETTY_PRINT | JSON_UNESCAPED_SLASHES);

// Salvestame faili
file_put_contents("XMLFile.xml", $json);

echo "Konverteerimine valmis! Vaata faili XMLFile.xml";
  1. Kuvame JSON jQuery‘st
HTML
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>jquery ja JSON</title>
    <script src="//code.jquery.com/jquery-1.11.2.min.js"></script>
    <script>
        $(document).ready(function(){
            $.ajax({
                type: "GET",
                url: "JSONFile.json",
                dataType: "json",
                success: kuvaJSON,
                error: vigaJSON
            });
        });

        function vigaJSON(){
            $("#container").append('<p style="color:red;">Probleemid JSON failiga!</p>');
        }

        function kuvaJSON(json){
            $.each(json.Reis.Reisid.Reis, function(index, reis){
                var reis_id = reis.reis_id;
                var valjumis_lennujaam = reis.Lennujaamad["V\u00e4ljumis_lennujaam"];
                var soidukoha_lennujaam = reis.Lennujaamad["S\u00f5idukoha_lennujaam"];
                var transpordi_liik = reis.Andmed.Transpordi_liik;
                var kaugus_km = reis.Andmed.Kaugus_km;
                var kestus_tunnid = reis.Andmed.Kestus_tunnid;
                var reisijate_arv = reis.Andmed.Reisijate_arv;
                var lennufirma_nimi = reis.Andmed.Lennufirma_nimi;
                var piletihind = reis.Andmed.Piletihind;

                $("#container").append(
                    '<div style="border: 1px solid;">' +
                    '<h3>Reis ID: ' + reis_id + '</h3>' +
                    '<p><strong>Väljumis lennujaam:</strong> ' + valjumis_lennujaam + '</p>' +
                    '<p><strong>Sõidukoha lennujaam:</strong> ' + soidukoha_lennujaam + '</p>' +
                    '<p><strong>Transpordi liik:</strong> ' + transpordi_liik + '</p>' +
                    '<p><strong>Kaugus (km):</strong> ' + kaugus_km + '</p>' +
                    '<p><strong>Kestus (tunnid):</strong> ' + kestus_tunnid + '</p>' +
                    '<p><strong>Reisijate arv:</strong> ' + reisijate_arv + '</p>' +
                    '<p><strong>Lennufirma nimi:</strong> ' + lennufirma_nimi + '</p>' +
                    '<p><strong>Piletihind:</strong> ' + piletihind + '</p>' +
                    '</div>'
                );
            });
        }
    </script>
</head>
<body>
<div id="container">

</div>
</body>
</html>

https://github.com/FantomTchi7/Andmevahetusvormingud/tree/master
